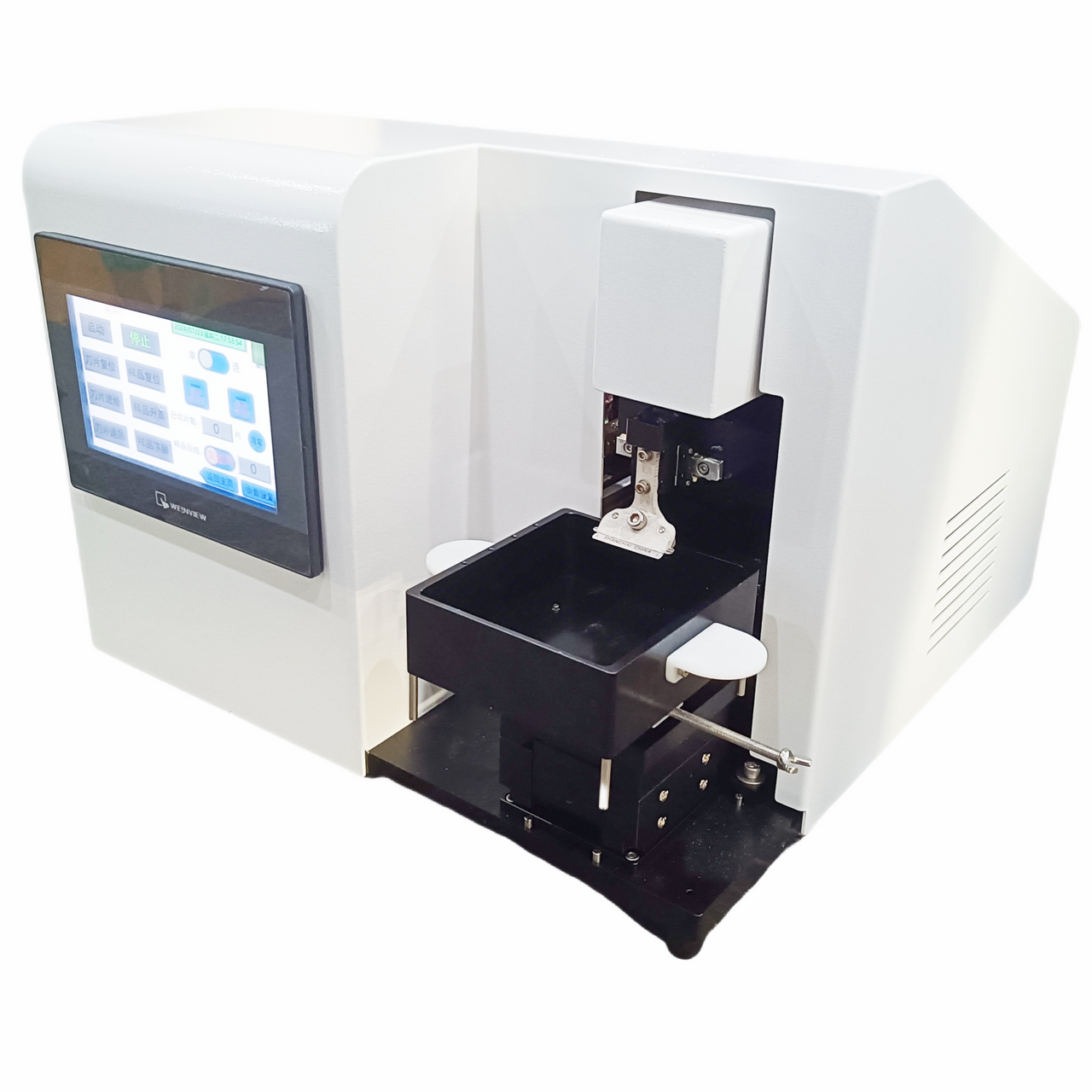

ZQP-86AD Fully Automatic Vibrating Microtome

Product Introduction:

The horizontal fully automatic vibration microtome is a high-quality tissue slicing equipment that is easy to operate and has excellent performance. Suitable for slicing samples of animal brain tissue, internal organs, and fresh plant roots, stems, leaves, seeds, fruits, etc.

The surface of the slices is flat and the thickness is uniform, which can meet the strict requirements for slice quality in
electrophysiological experiments and three-dimensional imaging of tissues. Currently, it has been widely used in electrophysiological slicing research, botany (horticultural science, plant pathology), electron microscopy observation slicing, imaging or tissue mapping research, organoid culture slicing research, immunohistochemistry research,
in situ hybridization, and other fields that require tissue slicing research.

Technical features and advantages:

• Fully automatic slicing, no need for manual intervention, high slicing accuracy and
  stability.
• The automatic positioning mechanism of the blade ensures zero installation error,
  without the need for additional device calibration, to ensure that the slice has no
  longitudinal deviation, which can protect precision samples, simplify the operation
  process, and save more live cells on the surface of the slice.
• 7-inch ultra large LCD touch screen, no special training required, easy to operate
  and user-friendly.
• Ultra high precision vibration head ensures smooth and even slicing surface, and
  uniform slicing thickness.
• Equipped with automatic sample retraction function, the sample automatically
  retracts when the blade returns, and the sample is automatically injected before each
  slicing.
• The fully automatic data storage system can store 10 sets of user parameters,
  simplifying user data management.
• The sample pool is covered with a completely black oxide layer for easy
  observation and retrieval of slices.
• The detachable clip on knife holder is convenient for regular cleaning to ensure the
  slicing effect.
• The magnetic sample holder is convenient for sample replacement and processing.
• Can work under physiological conditions: The detachable ice bath and buffer pool
  ensure that the entire slicing process is carried out under physiological conditions.
• External LED lighting, convenient for sample retrieval and observation.
• Independently develop all core technologies, which can be customized or functionally upgraded according to specific requirements.

Product Parameters:

• Slice thickness: 1-3000 μ m, minimum adjustable value 1 μm
• Slice frequency: 1-85Hz, minimum adjustable value 1Hz
• Amplitude: 1-3mm (optional)
• Slicing speed is 0.01-15mm/s, minimum adjustable value 0.01 mm/s
• Return speed: 0.1-15mm/s, minimum adjustable value 0.1 mm/s
• Sample vertical total stroke: 20mm (electric)
• Slice range: 54mm
• Slice window: 0.1-54mm (customizable)
• Sample retraction: Sample retraction 0-2000 microns, amplification 1 μ m
  (adjustable, switchable, optional configuration)
• Maximum sample size that can be cut: 54 * 35 * 20mm (length * width * height)
  Equipped with a standard knife holder: 37 * 46, suitable for razor blades, ceramic
  blades, and gemstone blades, with easy and fast disassembly and assembly of blades
  Sample positioning 1- rotatable: 360 ° (optional)
  Sample positioning 2- fixed type (optional, suitable for ultra long samples)
• Number of user data saved: 10 (optional configuration)
