Features:

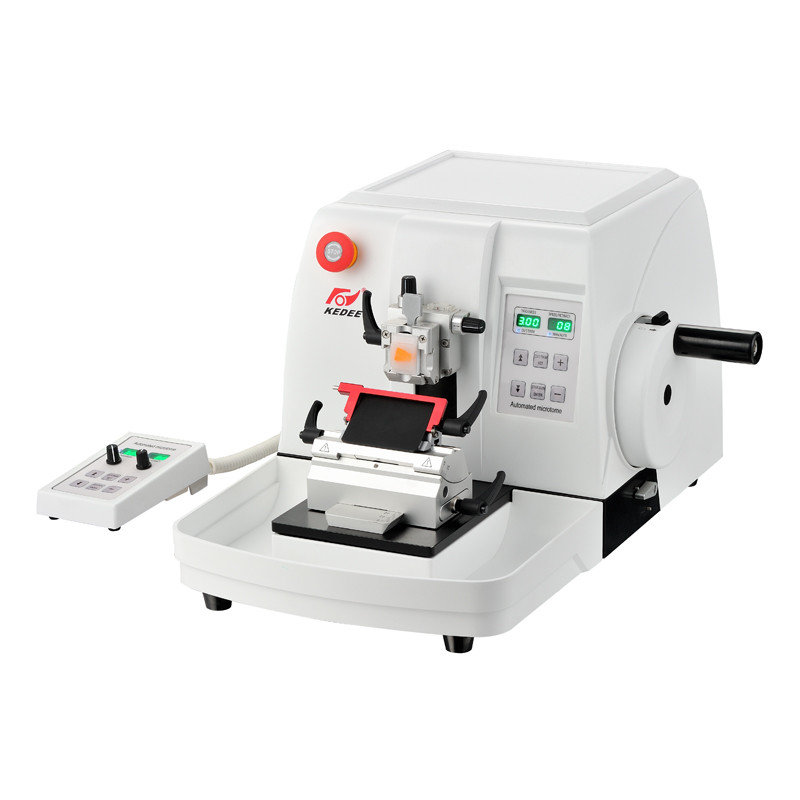

The Fully Automated Microtome KD-3398 provides utmost reliability, user benefit and outstanding operator comfort. The high section stability and precision turn this instrument into an universal multipurpose microtome for highest demands on sectioning paraffin as well as for hard sectioning technique in biology, medicine and industry. The cutting motor drive allows precise sectioning, ensuring good reproducibility.
Another user-friendly feature is the cutting window that can be adjusted to the specimen size, while the preselected speed is only applied within the cutting window. This enables the user to section delicate specimens precisely in a short period of time. The large section thickness range from 0.25 µm to 100 µm is divided into fine sectioning and trim sectioning. You can easily switch between these two ranges, even while sectioning.
Memory positioning allows the fast movement to a stored cutting position by pushing one button only.
Technical Specifications
- Section Thickness Setting Range: 0.25—100μm
- 0.25—2.5μm increment 0.25μm
- 2.5—5μm increment 0.5μm
- 5.0—10μm increment 1μm
- 10—30μm increment 2μm
- 30—60μm increment 5μm
- 60—100μm increment 10μm
- Trimming Thickness Setting Range: 1—600μm
- 1—10μm increment 1μm
- 10—020μm increment 2μm
- 20—050μm increment 5μm
- 50—150μm increment 10μm
- 150—600μm increment 50μm
- Retraction Setting Range: 0—50μm ( 0 is off )
- 5-10-15—50 (optional)
- Minimum Setting of Sectioning Thickness: 0.25μm
- Horizontal Feed: 28mm
- Vertical Specimen Stroke: 70mm
- Specimen Holder Rotation: at any angle within360 degrees
- Movement Range of the Base of BladeHolder Base: 0-60mm (front to back)
- Movement Range of the Blade Press plate: 0-23mm
- Specimen Clamp Rotation:at any angle within 360 degrees
- Specimen Orientation:XY – 8°
- Maximum Specimen Size:70×70mm
- Feed speed adjust: 1500μm/s ~ 3500μm/s
- Precision Error: ±1%
- Working Voltage:AC 220V±10% 50Hz (standard model); AC110V±10% 60Hz
- Power: 150W
- Dimensions: 580× 475× 340mm(W×D×H)
- Net Weight: 41kg
