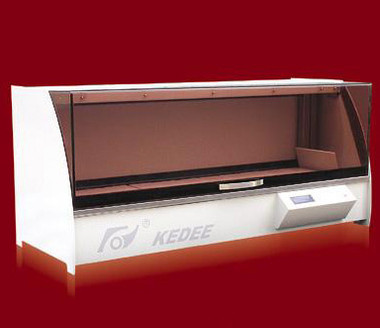

KD-TS3A Tissue Processor

It is a close tissue processor that is the perfect combination of proven technology and a modern, functionally enhanced design. Gentle specimen processing and maximum safety at all stages of processing are the result of robust engineering design based on proven and precise mechanics in conjunction with a friendly user interface.

Features:

• Re-circulated atmosphere depurative system that absorbing unhealthy volatilization gas.

• Anhydrous heating element.

• UPS build-up, power backup.

• Noiseless.

Parameter:

• Electrical: Working voltage: 110/220 VAC, frequency: 50/60Hz

• Power: 800 W

• Overall dimensions: 1000x420x450 mm (LxWxD)

• Dry weight: 80 kg

• Wax baths: Number: 3

• Capacity: 1.0 L

• Temperature range: ambient temperature to 99°C

• Temperature tolerance: + 1°C

• Reagent containers: Number 9

• Capacity: 1.0 L

• Infiltration time in reagent containers: 1 min-99 hours

• Infiltration time in wax baths: 1 min-24 hours.

• Interval of infiltration in the stations: 30 seconds

• Interval of lifting up tissue basket for vibration: 15 seconds

• Standard tissue basket: Number: 1 (2 optional)

• Capacity: approx. 80 cassettes

• Programs: Number: 12, freely selectable.

Technical specifications:

• Tissue baskets made of metal with varying capacities of up to 80 cassettes.

• Ergonomic control panel with LCD.

• Delayed start function up to 99 hours.

• Infiltration time separately programmable for each station.

• Possibility of interrupting an automatic process for reloading or removing cassettes for special applications before the end of a run.

• Easy editing and changing of programs, even during a processing run.

• Audible alarms, advanced safety concept.

• Glass encloser.
