Quick-Ray Manual Tissue Microarrayer Full Set

Product Description

The Quick-Ray® Manual Full Set is used for building five different sized tissue microarrays (1mm x 120 wells, 1.5mm x 90 wells, 2mm x 60 wells, 3mm x 30 wells, 5mm x 20 wells)

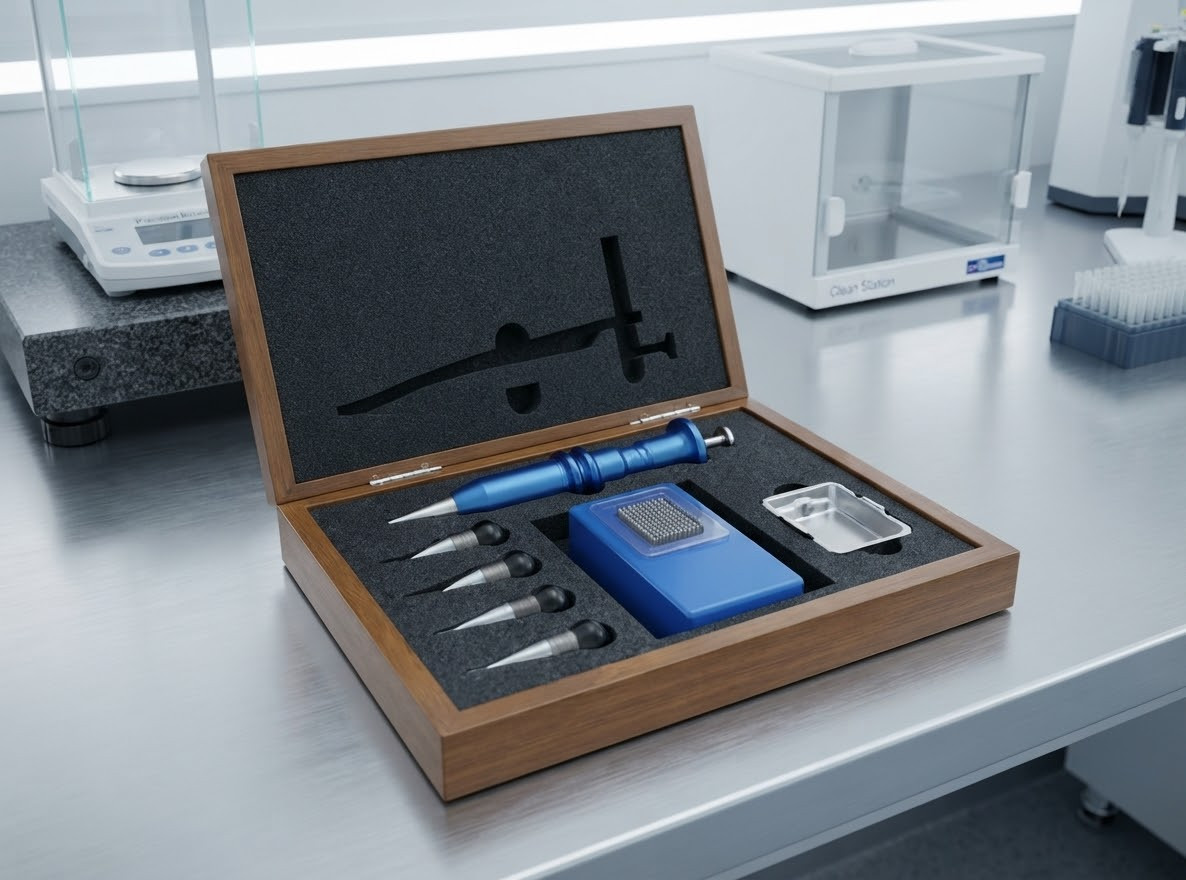

The Quick-Ray® Manual Full Set comes with:

One puncher
Five tips of different sizes (1, 1.5, 2, 3 and 5mm in diameter)
Five recipient blocks (1mm x 120 wells, 1.5mm x 90 wells, 2mm x 60 wells, 3mm x 30 wells, 5mm x 20 wells)
One base mold (to hold the recipient block while the tissue cores are transferred to it)
One set of guide for 1mm recipient block
One user's guide (manual)

For more information on how to build a TMA block, click here

For more information on how to use the guilde, click here

For more information on troubleshooting, click here

Product Videos

Quick-Ray Mold and Quick Ray Manual Set (06:08)

The manual tissue microarrayer called 'Quick Ray' offer the researchers to extract the sample tissues from Donor blocks and insert the extracted tissues to the correspondent hole of the premade recipient blocks. The Quick-Ray set comes with one puncher, 5 tips of each size, and recipient blocks of each size, a base mold, and a guide for 1mm recipient block. A tissue puncher is assembled with changeable tips of different diameters. Currently, 5 different sizes are available: 1, 1.5, 2, 3, and 5 mm in diameters.
