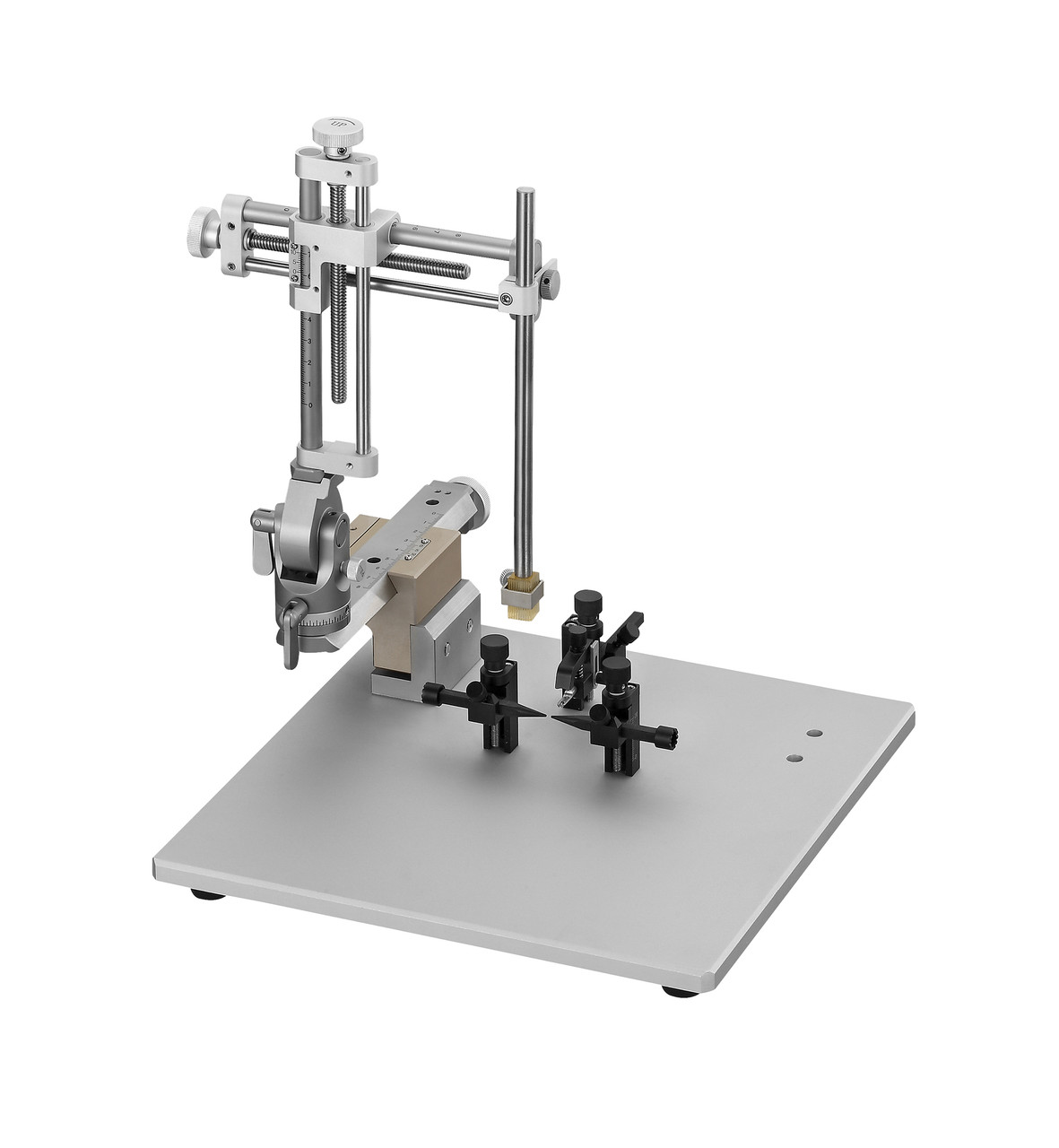

Portable Stereotaxic Instrument for Mouse

Product Description

The portable stereotaxic instrument cancels the traditional U-shaped frame, and the operation space is larger. This type is specially designed for mouse. The height of the nose bar and ear bars can be adjusted from 0-20mm, which is convenient for adjusting the level of the skull. The accuracy of non-digital models is 100 μm, and the accuracy of digital models is 10 μm.

Key Benefits

Specific fixed base ( 255mm x 255mm) for mice, fixed more quickly.
Replace the U-frame, enlarge the operating space, more economical and reliable.
Unique UP indicator to prevent incorrect operation..
Double-lead screw design, more stable and accurate operation.
The ear bar is made of polyoxymethylene resin, 4 different fixed points with 1mm resolution for scales.

Technical Specifications

1. Base plate size : 255mm x 255mm.

2. Ear bars made of polyoxymethlene resin, unique and light.

3. Height adjustment range for palate clip: 20mm (0mm~+20mm).

4. Height adjustment range for ear bars: 20mm(0~+20mm).

5. Ear bars with laser engraved scales (1mm resolution).

6. Working distance in 3 dimension is 80 mm with precise alignment to 0.1mm resolution.

7. Vertical direction: 180° rotation and lock at any angles.

8. Horizontal direction: 360° rotation and lock at any angles.

9. Dual-lead screws ensure stable, accurate and smooth manipulation.

10. Accuracy and flexibility can be maintained at variable temperatures.

11. Unique anti-clockwise UP mark engraved in the knob prevents incorrect operation.

12. Vertical lock and fixing knob are separated to ensure accurate function at any angle.

13. Replace the U-frame, enlarge the operating space, more economical and reliable

14. Laser engraved scales enable comfortable reading.

15. Ear bar locked plate pressing instead of clamping ensures more stability.

16. Syringe pump, micro camera and drill can be attached to instruments.

Order Information

Category	Model	Product Description	Remark
Stereotaxic host (without accessories)	68805	Portable Mouse Stereotaxic Instrument, SGL M	Standard configuration, non-digital model (accuracy is 100μm), including 68863S base, 68401 3-axis manipulator-left, without nose bar, ear bars, holder and mask.
	68806	Portable Mouse Stereotaxic Instrument, Dual M	Standard configuration, non-digital model (accuracy is 100μm), including 68863D base, 68401 3-axis manipulator-left, 68402 3-axis manipulator-right, without nose bar, ear bars, holder and mask.
	68807	Portable Mouse Stereotaxic Instrument, SGL M, Digital	Standard configuration, digital model (accuracy is 10μm), including 68863S base, 68409 3-axis digital manipulator-left, without nose bar, ear bars, holder and mask.
	68808	Portable Mouse Stereotaxic Instrument, Dual M, Digital	Standard configuration, digital model (accuracy is 10μm), including 68863D base, 68409 3-axis digital manipulator-left, 68410 3-axis digital manipulatorright, without nose bar, ear bars, holder and mask.
Required accessories (optional)*	68033	Nose Bar for 68030 Mouse Adaptor	Optional, the cross-sectional size of the nose bar is 5* 5mm.
	68313	45°Ear Bars for 68030 Mouse Adaptor	Optional, including two tips of 45° and rubber, the cross-sectional size of the ear bars is 5*5mm.
	68034	18°Ear Bars for 68030 Mouse Adaptor	Optional, including two tips of 18° and serrated, the cross-sectional size of the ear bars is 5*5mm.
	68201	Standard Probe Holder-Corner, clamping range: 0.3-1.5mm.
	68217	Cannula Holder, clamping diameter: 3.5mm.	The clamping part is made of plastic.
	68205	Cannula Holder, clamping diameter: 3.5mm.	The clamping part is made of metal.
	68214	Ceramic Ferrule Holder, clamping diameter: 1.25mm.
	68215	Ceramic Ferrule Holder, clamping diameter: 2.5mm.
	68206	General Probe Holder, clamping range: 3-12mm.
	68218	Syringe Holder, the syringe barrel clamping range is 6mm-12mm, and the syringe needle clamping range is 0.3mm-1.5mm.
	68605	Microdrill Holder, clamping diameter: 14.5mm.	Suitable for 78001 microdrill.

*Indicates that other specifications can be selected, which can be viewed from the product catalog of RWD.
