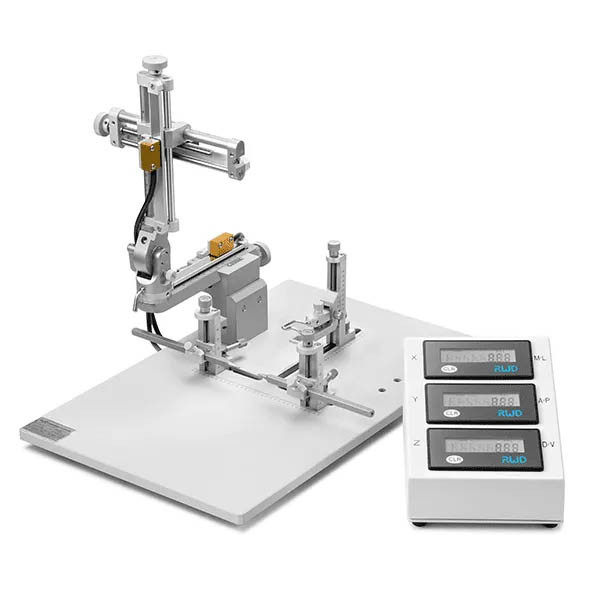

Portable Rat and Mouse Stereotaxic Instrument

Product Description

The portable stereotaxic instrument cancels the traditional U-shaped frame, and the operation space is larger. The adaptor and ear bars are removable for rodents of different weights. The height of the adaptor is adjustable from 0-55mm, and the height of the ear bars is adjustable from 0-45mm, which is convenient for adjusting the level of the skull. The accuracy of non-digital models is 100 μm, and the accuracy of digital display models is 10 μm.

Replace the U-frame, enlarge the operating space, more economical and reliable.
Adaptor can be substituted for rat and mouse
Unique UP indicator to prevent incorrect operation.
Double-lead screw design, more stable and accurate operation.
Relieve eyestrain by light interrupted.
Curved nose clamp secure the animal firmly.

Technical Parameters

1. Base plate size: 400mm x 255mm.

2. Distance between ear bar and base plate: 35.5mm.

3. Ear bar slots with vernier of 0.1mm resolution.

4. Scale range of Ear bars: 35mm with 1mm resolution.

5. Dorsal/Ventral adjustment range for the adaptor: 30mm (+10mm~-20mm) with 0.1mm resolution.

6. Working distance in 3 dimension is 80 mm with precise alignment to 0.1mm resolution.

7. Vertical direction: 180° rotation and lock at any angles.

8. Horizontal direction: 360° rotation and lock at any angles.

9. Dual-lead screws ensure stable, accurate and smooth manipulation.

10. Accuracy and flexibility can be maintained at variable temperatures.

11. Unique anti-clockwise UP mark engraved in the knob prevents incorrect operation.

12. Vertical lock and fixing knob are separated to ensure accurate function at any angle.

13. Replace the U-frame, enlarge the operating space, more economical and reliable

14. Laser engraved scales enable comfortable reading.

15. Ear bar locked plate pressing instead of clamping ensures more stability.

16. Syringe pump, micro camera and drill can be attached to instruments.

Order Information

Category	Model	Product Description	Remark
Stereotaxic host (without accessories)	68809	Portable Rat and Mouse Stereotaxic Instrument, SGL M	Standard configuration, non-digital model (accuracy is 100μm), including 68867S base, 68401 3-axis manipulator-left, without adaptor, ear bars, holder and mask.
	68810	Portable Rat and Mouse Stereotaxic Instrument, Dual M	Standard configuration, non-digital model (accuracy is 100μm), including 68867D base, 68401 3-axis manipulator-left, 68402 3-axis manipulator-right, without adaptor, ear bars, holder and mask.
	68811	Portable Rat and Mouse Stereotaxic Instrument, SGL M, Digital	Standard configuration, digital model (accuracy is 10μm), including 68867S base, 68409 3-axis digital manipulator-left, without adaptor, ear bars, holder and mask.
	68812	Portable Rat and Mouse Stereotaxic Instrument, Dual M, Digital	Standard configuration, digital model (accuracy is 10μm), including 68867D base, 68409 3-axis digital manipulator-left, 68410 3-axis digital manipulatorright, without adaptor, ear bars, holder and mask.
Required accessories (optional)*	68087	Mouse Adaptor	Only used for portable rat and mouse stereotaxic instrument
	68088	Rat Adaptor	Only used for portable rat and mouse stereotaxic instrument
	68301	Rat 18° Ear Bars
	68306	Mouse 60° Ear Bars
	68201	Standard Probe Holder-Corner, clamping range: 0.3-1.5mm.
	68217	Cannula Holder, clamping diameter: 3.5mm.	The clamping part is made of plastic.
	68205	Cannula Holder, clamping diameter: 3.5mm.	The clamping part is made of metal.
	68214	Ceramic Ferrule Holder, clamping diameter: 1.25mm.
	68215	Ceramic Ferrule Holder, clamping diameter: 2.5mm.
	68206	General Probe Holder, clamping range: 3-12mm.
	68218	Syringe Holder, the syringe barrel clamping range is 6mm-12mm, and the syringe needle clamping range is 0.3mm-1.5mm.
	68605	Microdrill Holder, clamping diameter: 14.5mm.	Suitable for 78001 microdrill.

*Indicates that other specifications can be selected, which can be viewed from the product catalog of RWD.
