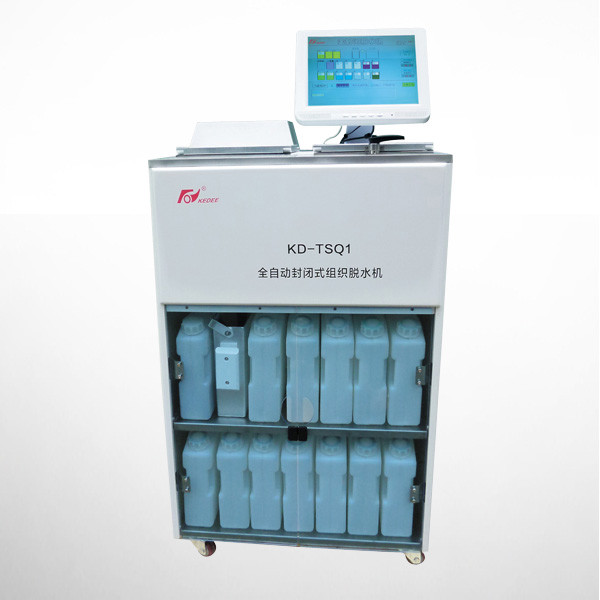

KD-TSQ1 Fully Automatic Enclosed Tissue Processor

Main Features:

◆Operator Interface of 15 inch color LCD touch screen
◆Enclosed Tissue treatment system with no pollution of gas leakage, to meet requirement of environmental protection.
◆Mode of Sample processing: Sample not move, Reagent move.
it can avoid the risk of  power failure of machine, or other mechanical failure.
◆Timing Mode: Finishing time of tissue processing any day in the week can be set
◆Fuction of Protection System of Power Failure. Once main power restored, the previous protocols is automatically resumed and continue to work in order.
◆10 Set of Programmes stored in the system  and can be set for purpose.
◆Special design of Reagent Station makes the liquid totally back-flow to avoid any mixture and to extend using time of reagent.
◆Patented design of cassette holder makes reagent and samples thoroughly contact with each other,it improves effection of tissue processing and reduce working time.
◆Dual Purpose of processing: one key switch normal processing motion and Rapid processing motion
Rapid Processing motion stirred in day time finished in 3 hours, Normal Processing Motion stirred in the evening.
◆Device for Air pressure transfer: Formal air pressure transfer of several solenoid valves replaced by One single mechanical structure replace formal in order to avoid high fault error.
◆Fuction for changing wax automatically:
Wax in No.1 Container wash into waste container, then wax in NO.2 container goes into No.1 Container, then No.3 goes into No.2 and so on
◆Fuction of over temperature protection occured by accidental heating
◆Fuction for magnetic stirring which shorten time of tissue processing and make good processing effection.
◆Alarm and Screen display when finishing work.
◆Capacity of tissue processing: 400pcs cassette at most.

Technical Specifications:

◆Bottle amount : 12. 1 - 9 for dehydration reagent,  14 - 16 for cleaning agent
◆Nos of Reagent Station: 12
◆Tissue Processing Station: NO.1 to No.9 Station
◆Washing Station: No.14 to No.16 Station
◆Nos of Wax Tank: 3(No.10,12 and 13)
◆Nos of Working Station: 1
◆Capacity of Processing Station: 9Liters
◆Capacity of Reagent Station ：6L
◆Temp.of Processing Station:
◆Medium is the solvent: ≤45℃
◆Medium is the Wax: 58℃-70℃
◆Operation pressure:＜0.1Mpa
◆Wax temperature :58℃-70℃
◆Wax melt time not more than 3 hours
◆Power input:＜1500VA+10%
◆Time for immerse: 0 - 99 hours 59 minutes
◆Working Voltage:220VAC±10%,50/60HZ
◆Time for Inflow Liquid: no more than 5Min
◆Time for Exclude Liquid: no more than 5Min
◆Stirring time:  set randomly
◆Interval time for Stirring: set randomly
◆Operation mode: manual and automatic
