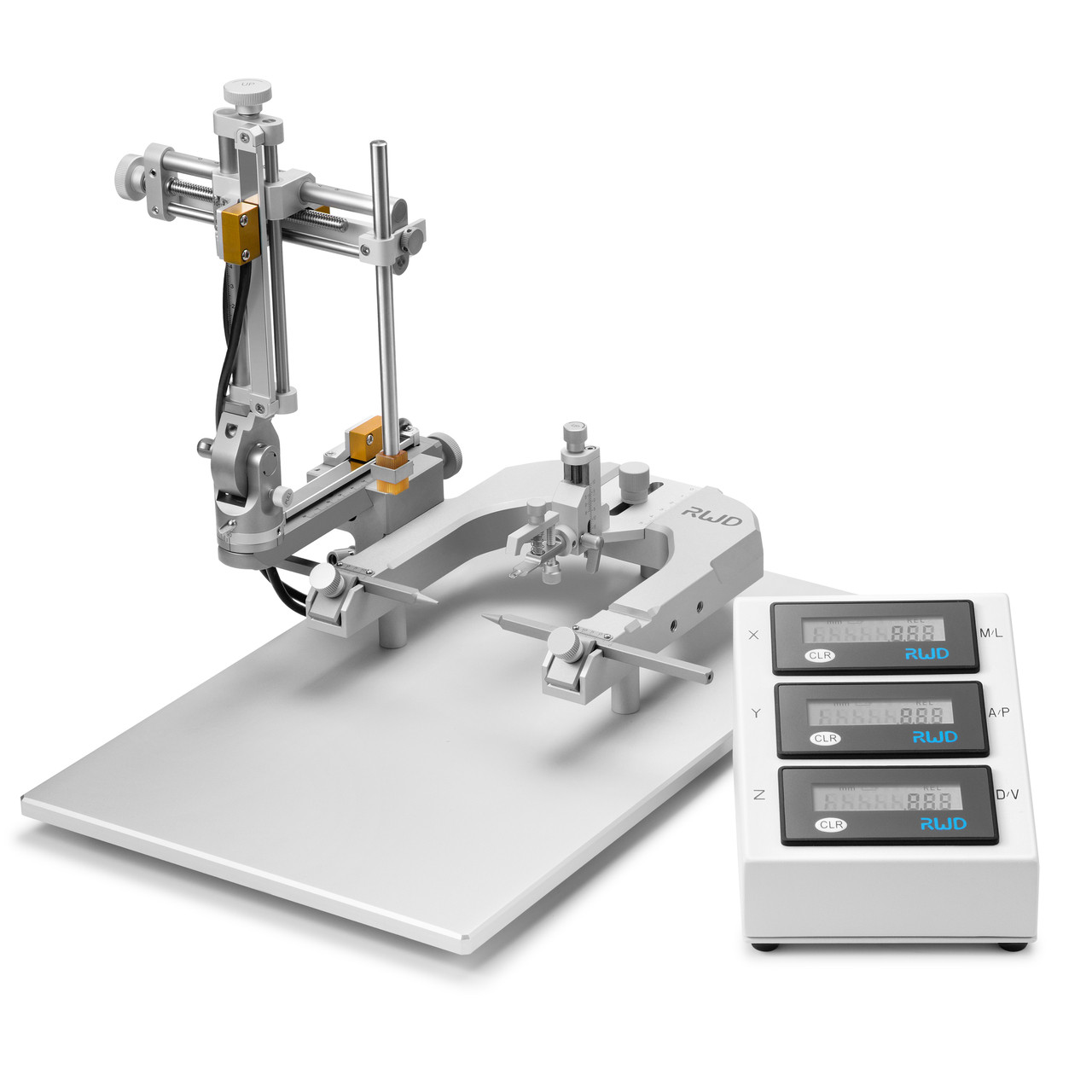

Digital Stereotaxic Instruments

The desktop digital stereotaxic instrument adds a digital display module on the basis of the standard type. The displacement sensor can display the displacement more accurately, reducing the tedious steps of manual reading. The displacement accuracy reaches 10 μm, and the origin can be set arbitrarily within the range.

Technical Specifications

1. Adaptors available for rat, mouse, rabbit, guinea pig, etc.

2. LCD digital display, real-time shows displacement distance, accuracy 10μm

3. One key to reset, no secondary readings and calculations

4. Powered by AA battery, no electronic interference

5. Working distance in each dimension is 80 mm with precise alignment to 0.1mm resolution.

6. Vertical direction: 180° rotation and lock at any angles.

7. Horizontal direction: 360° rotation and lock at any angles.

8. Dual-lead screws ensure stable, accurate and smooth manipulation.

9. Accuracy and flexibility can be maintained at variable temperatures.

10. Extended base plate (400mm x 255mm) is applicable for a variety of animal sizes.

11. Unique anti-clockwise UP mark engraved in the knob prevents incorrect operation.

12. Vertical lock and fixing knob are separated to ensure accurate function at any angle.

13. To ensure a precise designed lateral rotation operating space, the distance between knob and the U-shaped frame is 28mm.

14. Laser engraved scales enable comfortable reading.

15. Curved nose clamp design secures the head of animals.

16. Ear bar locked plate pressing instead of clamping ensures more stability.

17. Syringe pump, micro camera and drill can be attached to instruments.

Order Information

*Indicates that other specifications can be selected, which can be viewed from the product catalog of RWD.
