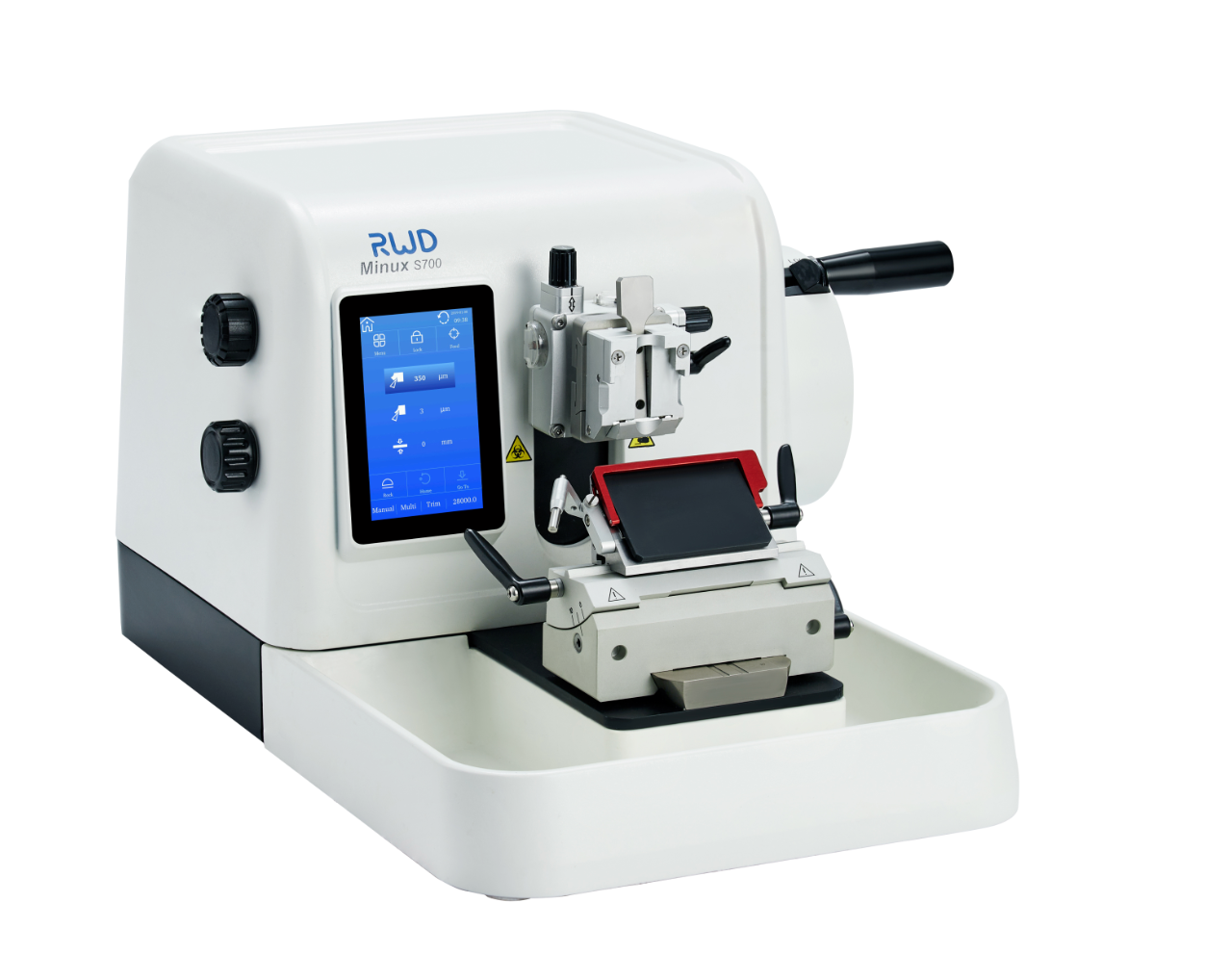

Minux® S700A Fully Automated Rotary Microtome

Product Description

RWD S700, S700A, S710 and S712 microtomes have been registered and listed by the US FDA (available on the FDA official website) and have been approved for clinical use.

S700A is a fully automated microtome with automatic, semi-automatic, and manual options available to meet the different needs of microtomists. Featured four mechanized cutting modes to produce high-quality sections across an extensive range of specimen types.

It displays extraordinary ergonomic characteristics for comfortable operation while maintaining reproducible precision.
The unique side specimen knob and visual pointer design make specimen advance and retraction more precise.

Handwheel double lock system and knife ejector and guard enhance safety.Special memory system to remember the optimal specimen position for fast and effortless sectioning.

The 2-in-1 blade holder satisfies the use of high and low-profile blades.

Features & Benefits

Accurate

Cross roller bearings and Spindle imported from Germany, combined with a five-phase high-resolution Stepper motor and a Link block made of aviation aluminum, form a high-precision sampling system to ensure slice quality. Original imported Drive motor and encoder ensure stable and smooth automatic slicing
Accurate positioning: Patented technology pointer identification, the sample angle can be adjusted visually, and the positioning is more accurate; the knife holder has a small lateral displacement and high accuracy. The base has a scale, which is convenient for the knife holder to locate and improve the quality of slices.

Safety

Operator safety: The handwheel dual locking system comes with a lock prompt sound, and is equipped with a knife ejector and a knife guard, so that the user can safely replace the sample and blade. After the automatic slicing is completed, the electronic brake keeps the handwheel in a stable state to ensure safe operation

Intelligent

Intelligentt slicing: Four automatic slicing modes to meet the needs of different slicing scenes. Cutting window function to ensure the quality of slices while improving the efficiency of automatic slices
Information tracking: 5-inch touch screen, history recording system, easy to trace back information and quickly solve problems

Convenient

Convenient operation: The imported military-grade side sample injection knob conforms to the ergonomic design, and the operation is more comfortable and coordinated.
Convenient maintenance: special material waste tank, non-wax, easy to clean

Technical Parameters

Type	Semi-motorized: motorized feeding manual sectioning
Section thickness range	Range: 0.5-100 μm Setting values: 0.5 – 5.0 µm in 0.5 µm increments 5- 20 µm in 1µm increments 20 – 30 µm in 2 µm increments 30- 60 µm in 5 µm increments 60- 100µm in 10 µm increments
Trimming section thickness	Range：1 – 800 µm Setting values: 1- 10 µm in 1µm increments 10- 20 µm in 2 µm increments 20- 50 µm in 5 µm increments 50- 100 µm in 10 µm increments 100- 800 µm in 50 µm increments
Specimen Feed	28 mm
Vertical Stroke	70 mm
Maximum sample size	60×50×40 mm
Specimen orientation	X axis/Y axis8°, Z axis 360°
Specimen retraction	0-250 μm adjustable
Blade holder	2-in-1
Remaining horizontal stroke	1 mm, acoustical and visual prompts
Rock mode	√
Memory position	√
Historical record system	√
Weight	28 kg
Dimension	470 (W)×553 (D)×305 (H) mm

Semi-Auto VS Fully-Auto

Model	S700 Semi-Auto	S700A Fully-Auto
Section thickness setting range: 0.50 – 100 µm	√	√
Trimming section thickness setting range: 1 – 800 µm	√	√
Electric sectioning speed: 0-1800 µm	√	√
Specimen retraction: 0-250 µm	√	√
Specimen feed: 28 mm	√	√
Vertical stroke: 70 mm	√	√
Specimen orientation with zero position horizontal/vertical rotation: X/Y axis 8°	√	√
Maximum specimen size：555030 mm	√	√
W x D x H: 470 mm×553 mm×305 mm	√	√
Machine weight	28kg	36.4kg
Fully motorized and semi- motorized mode switch		√
Emergency stop button		√
Cut window function		√
Slice speed selection		√
Multiple slice modes		√
Pedals		√
