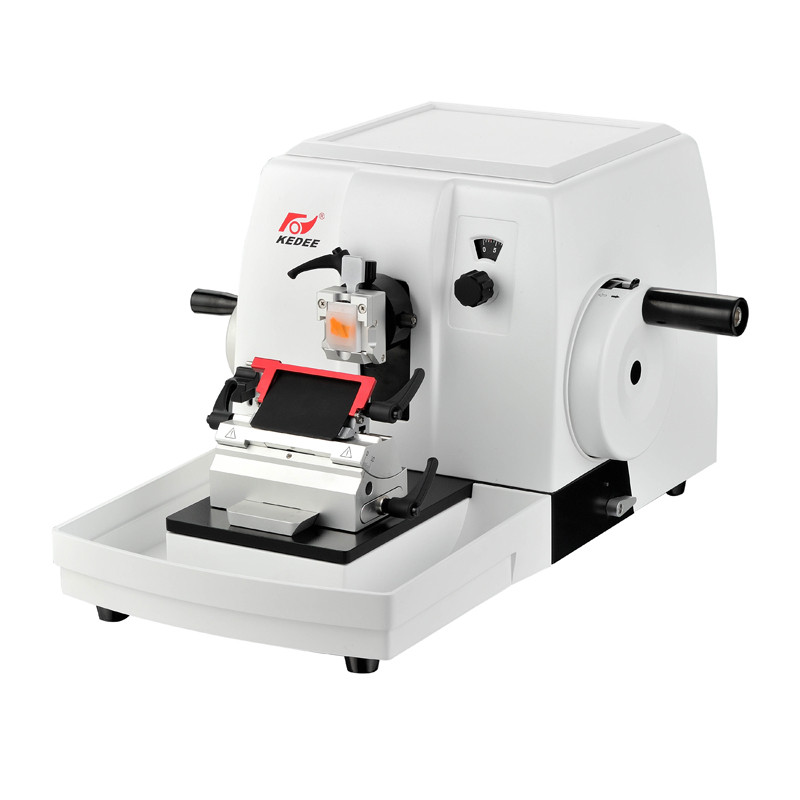

KD-2268 Rotary Microtome



Product Description


The Microtome KD-2268 is designed to meet multiple requirements of histology or histopathology labs. It is also suitable for the use in research labs as well as industrial quality assurance.

In being manual, the Microtome KD-2268 is flexible to use at any place in the laboratory. With its high-precision mechanics inside, the Microtome KD-2268 permits quality sections, while maintaining a high, consistent throughput.

Great functionality and the appealing design are the key features of our microtome. Optimal user comfort enables a rapid, safe and smooth sectioning, even under heavy workload.

The integrated sectioning waste tray is resistant to xylene, and can be detached for cleaning.

Technical Specifications:

  • Section Thickness Setting Range: 0–60μm
  • Section thickness settingoptions:
  • 0–20μm      increment 1μm
  • 20–60μm     increment 5μm
  • Trimming Thickness Setting Range: 0- 60μm
  • Minimum Setting of Sectioning Thickness: 1μm
  • Maximum Specimen Size: 70×70mm
  • Trimming Thickness: 15μmand 35μm
  • Specimen Retraction: 60μm(optional)
  • Total Horizontal Specimen Feed:28mm;
  • Vertical Specimen Stroke:70mm
  • Movement Range of the Base of BladeHolder Base: 0-60mm (front to back)
  • Movement Range of the Blade Press plate: 0-23mm
  • Specimen Holder Rotation: at any angle within360 degrees
  • Specimen Orientation:XY – 8°
  • Precision Error: ±1%
  • Dimensions: 590×500×330mm (W×D×H)
  • Net weight: 37kg
