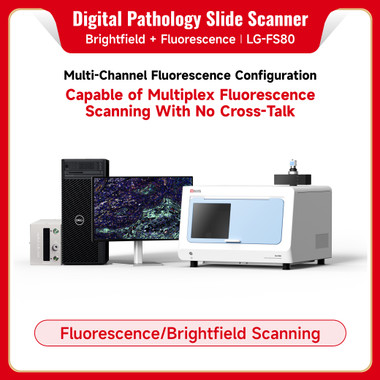

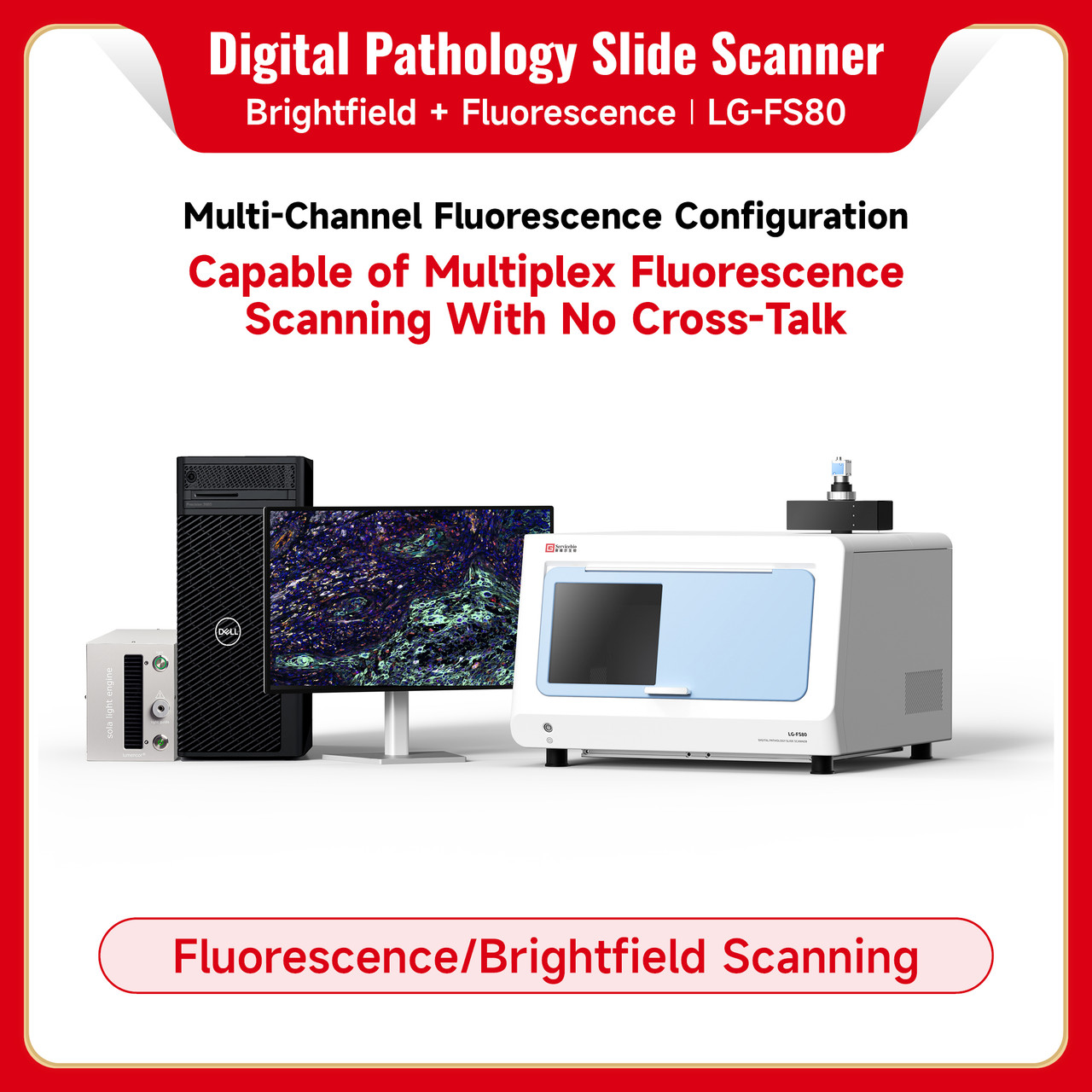

Digital Pathology Slide Scanner (Brightfield + Fluorescence)

Product Information

Full IF Multiplex Scanning Set+ Digital Pathology Slide Scanner + Fluorescence Quenching System (ZL-8) + Saiviewer Browse Software (IHC Analysis, IF Analysis, Spatial Analysis Modules) – specifically designed for multi‑round multiplex detection and tissue spatial research. Effectively reduces cross‑talk interference, removes tissue autofluorescence, and enables high‑resolution multi‑channel fluorescence imaging, delivering clearer signals and more accurate results. Easily achieve high‑quality multiplex detection and spatial expression analysis.

Simultaneously supports fluorescence and brightfield scanning imaging, enabling multi-fluorescence scanning with no cross-talk . With a capacity for 80 slides and support for up to 10 freely configurable channels, it delivers large-area stitching without ghosting, precise positioning, and vivid detail imaging. Combined with Servicebio's proprietary multi-round labelling technology, it achieves multi-fluorescence scanning without colour crosstalk. Paired with AIpathwell IF window analysis software, it enables arbitrary field selection for instant co-localisation analysis and quantitative assessment of positive cells—including number, percentage, and area—establishing an integrated digital pathology solution from scanning to analysis.

---

Performance Parameters

Slide Capacity	80 slides (8 racks, 10 slides per rack)
Slide Loading Method	Automatic loading
Scanning Repeatability Accuracy	X and Y direction repeatability positioning accuracy ≤1.5μm
Specimen Recognition	Automatically and accurately recognizes tissue shape, scanning only effective tissue areas
Z-stack	Multi-layer focusing, obtaining images at different focal planes along the Z-axis within the scanning range
Depth of Field Extension	Fuses multi-layer scanned images into a single layer, supports up to 99 layers of fusion
Fluorescence Scanning	10-position motorized turret, supports installation of up to 9 filters
Scannable Slide Types	HE staining, IHC staining, TCT, bone marrow sections, frozen sections, TMA slides, immunofluorescence slides, FISH slides, special staining slides, hard tissue sections, plant tissue sections, etc.
Scanning Field of View Range	52mm × 25mm
Scan File Format	SVS
Barcode Recognition	Can automatically read 1D and 2D barcodes, naming slides with barcode content
